Drop Hammer Test Equipment

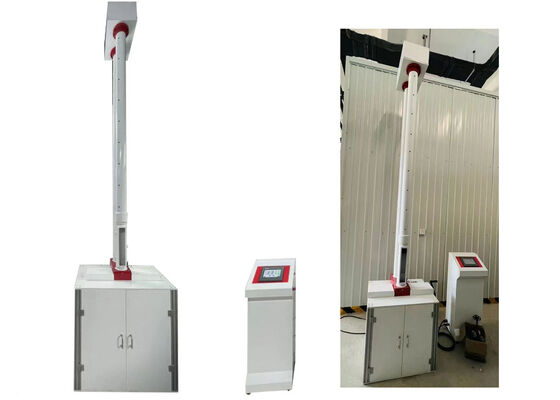

Engineered for professional laboratory testing, the Drop Hammer Pipe Falling Weight Impact Tester is dedicated to evaluating the external blow resistance performance of thermoplastic pipes, polymer samples and structural components. It features broad applicability for a wide range of pipe products, including PVC-U pipes, PVC-C pipes, PP pipes, PE pipes and communication pipelines.
Instrument Features
- Three-level Safety Protection System: Primary safety protection for sample access door, secondary protection for observation window door, and tertiary over-travel protection via upper and lower limit sensors
- High-speed Lifting Capability: High-torque stepper motor achieves 250 mm/second lifting speed, completing 0-to-2-meter vertical stroke in 8 seconds
- Precision Intelligent Hover Control: Multi-stage speed regulation programming ensures stable deceleration and accurate hovering with zero positional offset
- Optimized Exhaust Duct Design: 3D parametric modeling reduces air resistance during free fall with reinforced circumferential hoop reinforcements

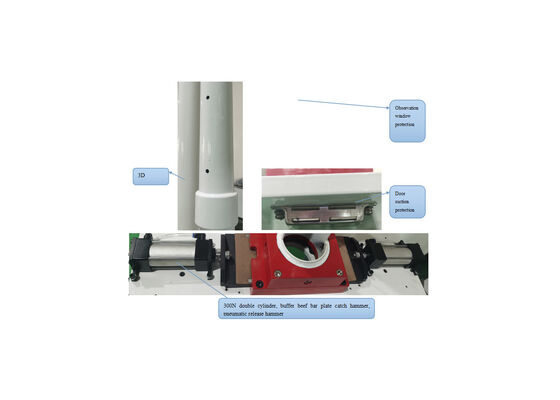

- Pneumatic Hammer Lock and Release Mechanism: High-power pneumatic drive units with 300N long-stroke dual cylinders and flexible tendon buffer plates
- Integrated Modular Construction: Standardized aluminum alloy profiles with 7-inch human-machine touch screen and Delta PLC controller
- Premium Component Configuration: Core components from internationally renowned brands including Adker cylinders, Delta controllers, and Mean Well power supplies
- Advanced Automatic Operation: Supports fully automated workflow including automatic zero calibration, hammer locking, releasing, and sequential testing
Technical Parameters
| Property | Value |
|---|
| Display | LCD |
| Product Name | Drop Hammer Pipe Falling Weight Impact Tester |
| Test Range | 0-300J |
| Max. Drop Weight | 15kg |
| Test Type | Drop Hammer Test |
| Pipe diameter range | Φ10-630mm |
| Max. Height | 2000mm |
| Min. Height | 40mm |
| Accuracy | ±0.5% |
| Dimension | 740×710×3850mm |
| Test method | Method-A: Passage Method; Method-B: Gradient Method |
| Power Supply | AC220V/50Hz |
Main Functions
- Professional precision testing device for evaluating external impact mechanical properties of diverse non-metallic materials including plastic pipes and plates
- Supports performance detection for full range of plastic pipeline products including PVC-U, PE, MPP, CPVC, and various specialized pipe types
Testing Principle
This testing method applies a drop hammer of standard-defined mass and dimension to strike designated positions of test specimens from calibrated falling heights. It determines the true impact rate (TIR) of finished products, with maximum permissible TIR value for qualified products set at 10%. By adjusting hammer mass or falling height, the system adapts to diverse technical specifications of various pipe products.
Packing and Shipping
All units are packed within robust wooden cases containing the main testing unit, operation manuals, spare components and auxiliary fittings. Complete international shipping documentation including commercial invoices and packing slips is provided. Final freight charges are calculated based on delivery destination and selected shipping mode.
Frequently Asked Questions
Please elaborate on Drop Hammer Test Equipment
Developed and produced by JHH based in Beijing, China, Drop Hammer Test Equipment is a professional precision testing device dedicated to evaluating the impact resistance performance of various test specimens.
What core testing objective does Drop Hammer Test Equipment achieve?
This testing device is designed to quantify the impact resistance properties of test samples, serving as a key testing solution to validate and guarantee finished product quality compliance.
What types of test specimens are applicable to Drop Hammer Test Equipment?
This equipment supports impact testing of multiple pipe products including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, transmission pipes, core layer foam pipes, double wall corrugated pipes, PE water supply pipes, and rigid plastic plates.
What measurement accuracy grade does Drop Hammer Test Equipment possess?
Drop Hammer Test Equipment delivers high testing precision with measurement accuracy reaching 0.5%.
What is the maximum testing energy capacity of Drop Hammer Test Equipment?
The Drop Hammer Test Equipment features a maximum rated testing energy of 300J for impact testing operations.
