Drop Hammer Test Equipment Designed for Impact Resistance Testing of Construction Materials Metal Parts and Composite Samples

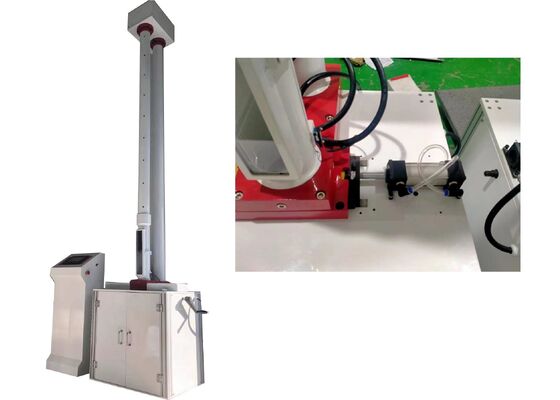

تصویر بزرگ : Drop Hammer Test Equipment Designed for Impact Resistance Testing of Construction Materials Metal Parts and Composite Samples

جزئیات محصول:

محل منبع:	پکن، چین
نام تجاری:	JHH
گواهی:	ISO9001, CE
شماره مدل:	XJL-300D

پرداخت:

مقدار حداقل تعداد سفارش:	1 مجموعه
جزئیات بسته بندی:	کیس چوبی
زمان تحویل:	7 -15 روز
شرایط پرداخت:	T/T، L/C، D/A، D/P، Western Union، MoneyGram
قابلیت ارائه:	20 ست در ماه

مخاطب

توضیحات محصول جزئیات

نام محصول:	تجهیزات تست چکش قطره ای طراحی شده برای تست مقاومت در برابر ضربه مواد ساختمانی قطعات فلزی و نمونه های	قطر چکش:	D25mm، D90mm می تواند سفارشی شود
محدوده تست:	0-300J	کیفیت چکش:	0.5-16 کیلوگرم
پشتیبانی از نوع V:	120 درجه	حداکثر قد:	2000 میلی متر
حداقل قد:	10 میلی متر	قطر نمونه:	Φ16mm-Φ630mm
برجسته کردن:	drop hammer test equipment for construction materials,impact resistance testing equipment for metal parts,drop hammer tester for composite samples , impact resistance testing equipment for metal parts , drop hammer tester for composite samples

Drop Hammer Test Equipment for Impact Resistance Testing

Product Overview

The drop hammer impact testing system operates on a straightforward yet highly efficient principle. A test specimen is impacted by a drop hammer with specified mass and profile, released from a predefined height to strike the designated position. Test intensity can be flexibly adjusted by modifying hammer mass and/or drop height.

This apparatus features extensive application scenarios, fully conforming to ISO 3127 and equivalent test method standards. It is widely adopted by plastic pipe research institutions, testing centers, and manufacturing enterprises to evaluate material impact resistance, serving as an ideal testing solution for the building materials sector and scientific research bodies.

The testing machine includes an anti-secondary impact mechanism, automatically measures impact height, and provides real-time data display. Compatible with both channel and gradient methods, it represents an easy-to-operate, safe, and dependable drop hammer impact testing device.

Applications

JINHAIHU XJL-300A is a premium drop hammer impact testing apparatus specially developed for building materials testing applications. Produced in Beijing, China, this ISO9001-certified equipment is acclaimed for structural durability and high measurement precision in assessing material impact resistance.

Construction sites
Manufacturing plants
Research and development institutions
Quality control laboratories
Academic and educational establishments

Standards Compliance

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256, ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, and equivalent standards.

Technical Parameters

Parameter	Specification
Model	XJL-300D
Ambient temperature	10℃-35℃
Drop hammer quality	0.5, 0.8, 1.0, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 6.3, 8, 10, 12.5kg (customizable)
Hammer diameter	D25mm, D90mm
Height of the fall	10mm-2000mm, error≤±2mm
Diameter of the sample	Φ16mm-Φ630mm
Deviation of impact center from fixture center	≤2mm
V-type supporting	120°
Power source	220VAC±10%
Outline dimension	720mm×710mm×3950mm
Net weight	385kg

Support and Services

We provide comprehensive after-sales support and professional technical services for our drop hammer impact testing equipment. Our dedicated engineering team delivers assistance covering equipment commissioning, routine maintenance, fault diagnosis, precision calibration, and tailored solutions for specific testing demands.

Our service team remains available around the clock to respond to all inquiries and technical concerns. For further product and service details, please contact us at your convenience.

Frequently Asked Questions

What is Drop Hammer Test Equipment?

Drop Hammer Test Equipment is a precision testing instrument manufactured by JHH in Beijing, China, used to test the impact resistance of test samples.

What is the purpose of Drop Hammer Test Equipment?

The equipment tests impact resistance of objects to guarantee product quality stability and qualification.

What products can Drop Hammer Test Equipment be used for?

Suitable for various pipes including PVC-U water supply pipes, sewage pipes, low-pressure water supply pipes, low-pressure transmission pipes, core-layer foam pipes, double-wall corrugated pipes, PE water supply pipes, and rigid plastic plates.

What is the accuracy of Drop Hammer Test Equipment?

Testing accuracy reaches up to 0.5%.

What is the maximum testing force of Drop Hammer Test Equipment?

Maximum testing energy is 300J.

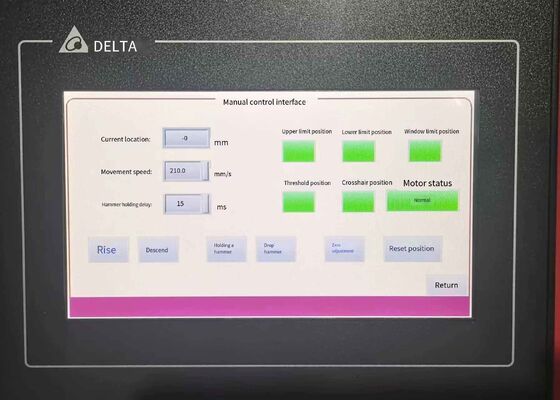

Product Images
