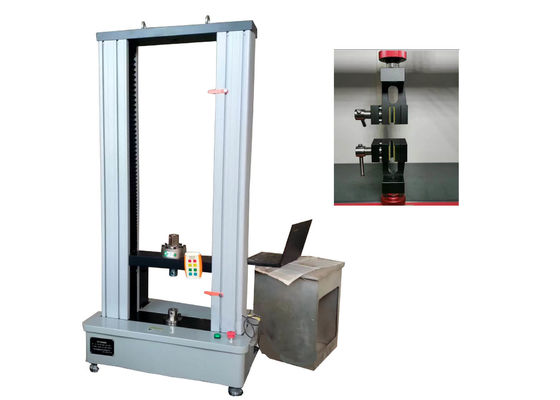

5KN 10KN 20KN 30KN 50KN Load Capacity UTM Tensile Compression Universal Testing Machine for Mechanical Properties Testing
Using:
Universal Testing Machine for Determination of Tensile Properties of Molded and Extruded Plastics
The Universal Testing Machine, specifically designed for determining the tensile properties of molded and extruded plastics, is engineered to evaluate the mechanical properties of various materials under static load conditions. It supports a comprehensive range of mechanical tests including tensile, compressive, bending, shear, tear, and peel tests.
This machine is applicable to diverse materials such as plastic sheets, pipes, profiles, plastic films, rubber, wires and cables, steel, and glass fibers, enabling the assessment of multiple physical and mechanical properties for quality verification and performance analysis.
Meet Standards:
This machine complies with the requirements specified in GB/T 228.1-2010 (Tensile Testing Method for Metallic Materials at Ambient Temperature) and GB/T 7314-2005 (Compression Testing Method for Metallic Materials). Additionally, it is compatible with data processing protocols aligned with international and national standards including GB, ISO, ASTM, and DIN.
It is fully capable of meeting users’ customized testing requirements and adapting to diverse industry-specific standards, ensuring compliance with rigorous quality verification workflows.
Software function:
The machine is equipped with automatic zero calibration functionality. Key mechanical performance parameters, including maximum force, upper-yield strength, lower-yield strength, tensile strength, compressive strength, modulus of elasticity, and percentage of elongation, are all automatically calculated by the system.
Main technical parameters:
| Model |
XWW-5KN/10KN/30KN/50KN |
| Type |
Double column model |
| Accuracy Grade |
Class 1 (Class 0.5 optional) |
| Force-measuring Range |
1%~100%FS(0.4%~100%FS optional) |
| Deformation-measuring Range |
2%~100%FS |
| Deformation-measuring Accuracy |
±1% |
| Crossbeam Displacement Resolution |
0.001mm |
| Crossbeam Speed Range |
0.05~500mm/min |
| Displacement Speed Accuracy |
≤ ±0.5% |
| Metal Extensometer Accuracy Grade |
±0.5% |
| Test width |
380(can up to 1200)mm |
| Tensile Space |
700mm |
| Compression Space |
1000mm |
| Clamps |
Tensile, compression, bending fixture |
| PC System |
Equiped with brand computer |
| Power Supply |
AC 220V±10%, 50Hz (can be customized as customer request) |
| Size of the host |
700*400*2000mm |
| Packing size & Weight |
800*500*2100mm,about 350kg |
FAQ:
Q1: What is an Electronic Universal Testing Machine?
A1: An Electronic Universal Testing Machine is a high-precision testing instrument engineered to assess the mechanical properties of materials, including tensile strength, compressive strength, modulus of elasticity, and elongation.
Q2: What materials can be tested with an Electronic Universal Testing Machine?
A2: An Electronic Universal Testing Machine accommodates testing of a broad spectrum of materials, encompassing metals, plastics, elastomers, and composites.
Q3: How accurate are Electronic Universal Testing Machines?
A3: Electronic Universal Testing Machines boast high measurement precision, with a measurement deviation within ±0.5% of the actual value.
Q4: What types of tests can be performed with an Electronic Universal Testing Machine?
A4: An Electronic Universal Testing Machine supports a comprehensive array of test modalities, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
Q5: What are the benefits of using an Electronic Universal Testing Machine?
A5: The Electronic Universal Testing Machine delivers cost efficiency and precision in assessing material mechanical properties. It also features intuitive operation and generates rapid test outcomes, thereby optimizing efficiency in material testing workflows.
