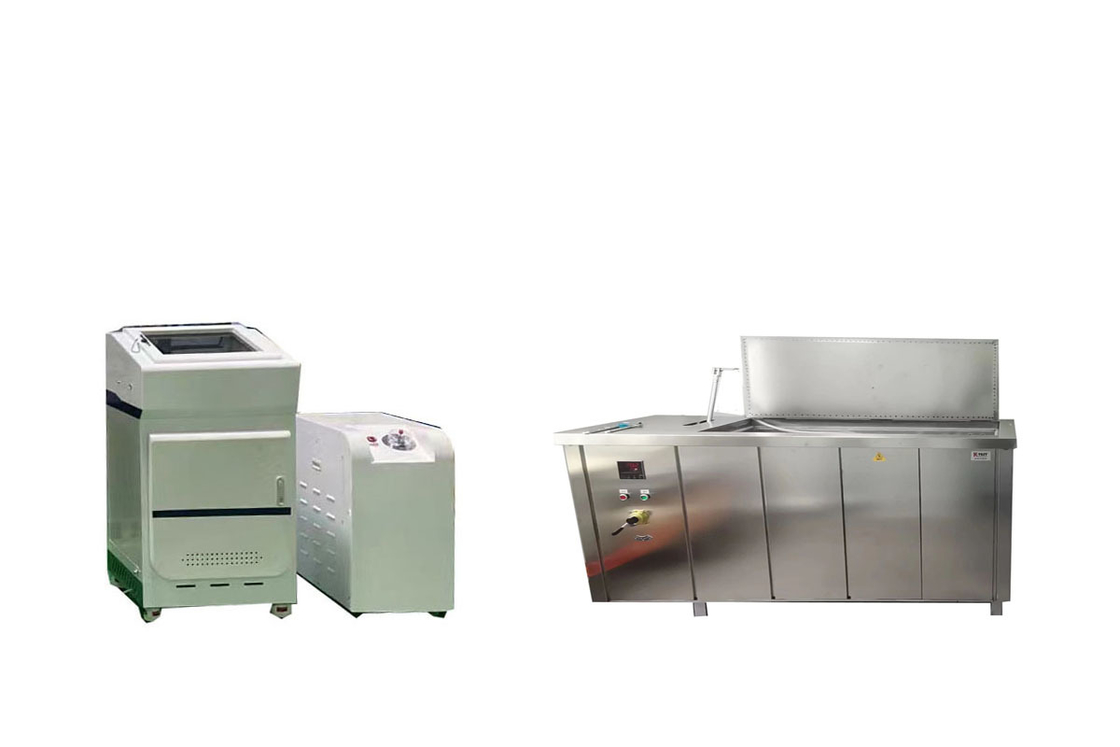

Industrial-Grade Hydrostatic Pressure Testing Machine for Accurate Pressure Testing
Product Description
The Hydraulic Instantaneous Burst Tester for Various Plastic Pipes for Fluid Transportation is specifically designed for two core testing applications: conducting hydraulic instantaneous burst tests on various plastic pipes used for fluid transportation, and determining the failure resistance time of thermoplastic pipes under long-term constant pressure.
Product Use
It serves as an indispensable testing instrument for scientific research institutes, quality inspection authorities, and pipe manufacturers, supporting critical workflows such as material performance research, product quality verification, and compliance testing.
Features
The Hydrostatic Testing Machine adopts an embedded computer for control. Featuring a modular design, it enables independent control of each testing station. In the event of a fault at any station, simply closing the stop valve of the affected station will not disrupt the normal operation of other stations.
- Pipe rupture detection
- Real-time monitoring of test processes
- Test data recovery
- Test result printing
- Test result storage
- Sample pretreatment parameter setting
- Test data storage for up to 7 days
Standards
ISO 1167, ASTM D1598, ASTM D1599, ISO9080, CJ/T108, ASTM F1335, GB/T6111-2003, GB/T15560, etc.
Technical Parameters
| Model |
XGY-10C |
| Diameter range |
Φ16-1200mm |
| Stations |
1, 2, 3, 4, 5, 6, 8, 10, 12, 15, 20, 25, 50, 100 etc can customized |
| Control mode |
Micro-control, industrial PC control |
| Display mode |
Industrial PC LCD color display |
| Storage mode |
PC storage |
| Print mode |
Color printer output |
| Test pressure |
Pressure range: 0.2-10MPA |
| Control accuracy |
±1% |
| Display resolution |
0.001MPa |
| Working range |
2%~100%FS |
| Indication error |
±1% |
| Test Timer |
Timer range: 0~10000h, Timer accuracy: ±0.1%, Timer resolution: 1s |
| Power |
380V 50Hz three-phase four-wire 1.2KW |
| End caps models |
from Φ16 to 1200mm |
| Water tank size |
Accord to the pipe size |
| Temperature range |
10-95℃ |
| Dimensions (three stations) |
710×620×1730(mm) or others |
Support and Services
We offer comprehensive technical support for Hydrostatic Pressure Testing Machines. Our team of seasoned technical support professionals is equipped to deliver the following services:
- On-site machine installation and commissioning (ensuring proper setup for optimal operational readiness)
- Professional troubleshooting and technical consultation (providing targeted solutions for operational anomalies)
- Repair and preventive maintenance services (sustaining long-term performance stability and extending equipment lifespan)
- Supply of authentic spare parts and consumables (guaranteeing compatibility and post-maintenance reliability)
- Timely software updates and upgrades (enhancing functionality to align with evolving testing requirements)
FAQ
Q1: What is the brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A1: The official brand name of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is JHH, and the product is produced in Beijing, China.
Q2: What is the purpose of the Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine)?
A2: The Hydrostatic Testing Machine (Plastic Pipe Hydrostatic Pressure Testing Machine) is primarily designed to evaluate the hydrostatic strength and bursting strength of plastic pipes, ensuring they meet preset performance and safety standards for practical application.
Q3: What types of components and materials can the Hydrostatic Pressure Testing Machine test?
A3: The Hydrostatic Pressure Testing Machine is applicable for testing plastic pipes and composite pipes, including PP-R, PP-B, PP-A, PVC, PE, PE-X, and other similar pipe types.
Q4: What is the accuracy of the Hydrostatic Pressure Testing Machine?
A4: The Hydrostatic Pressure Testing Machine features a high measurement accuracy, with a deviation of within 0.1% relative to its full-scale reading.
Q5: What is the maximum pressure that the Hydrostatic Pressure Testing Machine can test?
A5: The Hydrostatic Pressure Testing Machine boasts a maximum testable pressure of 10 MPa, which is equivalent to 100 bar (1450 psi).
